THERMOWELL

     Thermocouple (T / C)

     Resistance Temperature Detector (RTD)
  • THERMOWELL provides complete protection for the sensor (Temperature, Pressure etc) elements.

  • THERMOWELL is designed considering optimum Pressure, Temperature, critical Frequency, the nature of Media (abrasive, corrosive etc) and intensity of flow of media.

  • THERMOWELL allows removing or replacing of Sensing Instrument without draining or shutting down of process.

Most Commonly Used - THERMOWELLS

  • THREADED THERMOWELL drilled from Bar Stock OR BUILT-IN.

  • FLANGED THERMOWELL drilled from Bar Stock & welded flange

  • FLANGED THERMOWELL drilled from Bar Stock and in one piece.

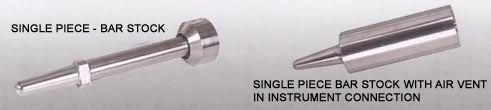

THREADED THERMOWELL - DRILLED BAR STOCK
 LEG EXTN.
T
mm		  PROC.CONN.
NPT / BSP 		  INSIDE
BORE DIA
mm  		   OUTSIDE DIAMETER MAX mm   LENGTH MAX
U mm

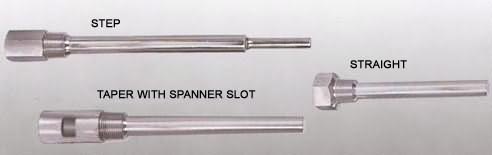

STRAIGHT  STEP  TAPER
     50
TO
225
1/2"
6.5
 16  16 - 12  16 - 12
300
1/2"
9.5
 16  --  --
300
3/4"
6.5
 19  19 - 12  19 - 12
400
3/4"
9.5
 19  --  --
400
1"
6.5
 25  25 - 12  25 - 12
600
1"
9.5
 25  25 - 16  25 - 16
600
      * STANDARD INSTRUMENT CONNECTION (IC) : 1/2" NPT/BSP/METRIC THREADS
* LONGER 'U' LENGTHS OFFERED BY BUTT WELDED MULTIPLE SECTIONS
* Other Requirements - Please Specify
