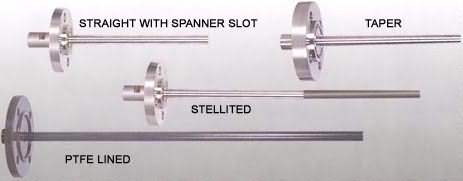

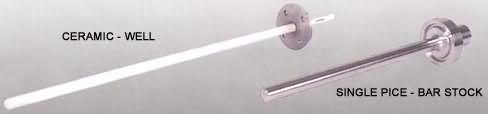

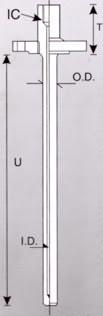

THERMOWELL FLANGED THERMOWELL - DRILLED BAR STOCK  LEG EXTN. T mm INST. CONN. NPT / BSP   INSIDE BORE DIA mm   OUTSIDE DIAMETER mm  LENGTH MAX U mm STRAIGHT  TAPER       50 TO 225 1/2" OR 3/4" 6.5 TO 11 16 MIN TO 28 MAX PARTIAL OR FULL FULL TAPER :600mm STRAIGHT : 1000 mm / PARTIAL TAPER LONGER LENGTHS ARE BUTT WELDED IN MULTIPL SECTION MATERIAL WELL FLANGE SS 304, 316, 304L,   316L, 310, 321, 446 INCONEL 600* or Eqvi. INCOLOY 800* or Eqvi. NICKEL MONEL* or Eqvi. TITANIUM HASTELLOY 'B' , 'C'* or   Eqvi. CERAMIC TUBE Other - Please Specify FORGED ASTM Gr.   A182 in SS 304, 316,   304L, 316L, 310, 321,   446 CARBON STEEL A105 FORGED ASTM A182   Gr. F5, F11, F22, LF1 NICKEL, INCOLOY 600 MONEL, INCOLOY 800 TITANIUM TANTALUM -Shield Other - Please Specify FLANGE DETAILS PIPE SIZE 1", 1 1/2", 2", 3" NB PRESSURE RATING 150#, 300#, 400 to 600#, 900 to 1500# FACING RAISED FACE, FLAT FACE, RING JOINT STANDARDS ANSI B 16.5, DIN, JIS, BS Other Requirements - Please Specify WELL PROTECTION COBALT BASE ALLOY, Gr. ST6* OR Eqvi., TUNGSTEN CARBIDE COATING, PTEE Lined. Sleeved in MONEL, NICKEL, TITANIUM, TANTALUM INCONEL, INCOLOGY, MONEL - Registered Trademark of INCO ALLOYS LTD., HASTELLOY - Registered Trademark of CABOT CORPORATION STELLITE - Registered Trademark of STELLITE CORPORATION We can also offer Special Materials conforming to UREA Grade as per ASTM A 262 Practice C or E (Corrosion Test) NACE MR - 0175   TEST CERTIFICATES OFFERED RAW MATRIALS FINISHED PRODUCTS Chemical & Physical Properties Physical Dimensions Ultra Sonic Test - if required Physical Dimensions Thread Check Hydraulic Pressure Test Dye Penetration Test at Weld Joints Radiography Test - if required IBR certification in form 'IIIC'-if required
